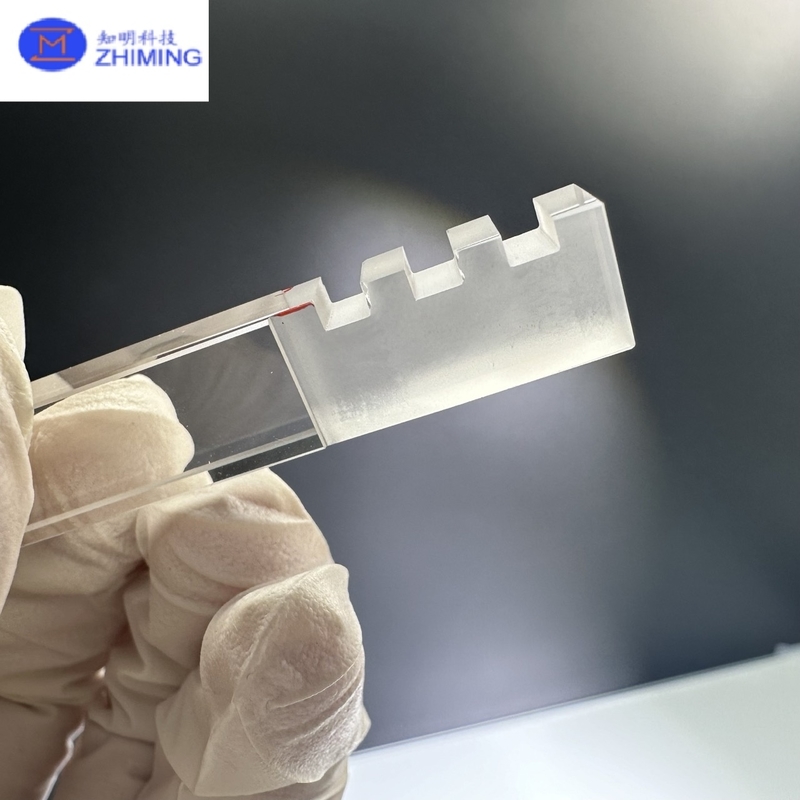

Sapphire Square Seed Crystal Precision Oriented for Crystal Growth

Introduction of Sapphire Seed Crystal

Sapphire seed crystals are small, highly refined single crystals of aluminum oxide (Al₂O₃) that serve as the indispensable starting material for the production of synthetic sapphire. In sapphire growth, the seed crystal functions as a “blueprint,” guiding the development of a new sapphire boule by dictating the lattice structure, orientation, and overall quality of the growing crystal. Without these seeds, large-scale production of uniform and defect-free sapphire would be virtually impossible.

Because sapphire is widely used in advanced industries—from LED substrates and semiconductor wafers to aerospace optics and luxury watch crystals—the seed crystal plays a strategic role in ensuring that the synthetic sapphire produced meets the highest optical, mechanical, and structural standards. Each seed crystal is carefully crafted, inspected, and selected to withstand the extreme temperatures and demanding conditions of sapphire growth furnaces.

How Sapphire Seed Crystals Are Made

The production of sapphire seed crystals is a precision-controlled process that requires expertise and specialized equipment. The steps include:

Selection of Master Sapphire Boule – The process begins with a large, defect-free synthetic sapphire boule, produced by established growth methods. Only boules with minimal stress, low dislocation density, and high purity (99.99% or higher) qualify for seed production.

Crystallographic Orientation – Using X-ray orientation systems, technicians determine the precise crystallographic planes within the boule. Common orientations include C-plane , A-plane , and R-plane . The correct orientation is essential, as it defines the direction in which the new sapphire boule will expand.

Precision Cutting – Ultra-thin diamond saws or laser systems cut the boule into small plates, rods, or blocks along the chosen orientation. Accuracy at this stage is critical—an error of even a fraction of a degree can lead to lattice mismatch during growth.

Polishing and Surface Treatment – The cut seed pieces undergo multiple stages of fine grinding, lapping, and chemical-mechanical polishing (CMP). This step removes subsurface damage and ensures an atomically smooth surface, enabling flawless lattice continuation during crystal growth.

Cleaning and Quality Control – The seed crystals are cleaned in chemical baths to remove any contaminants. Advanced inspection methods (optical microscopy, X-ray topography) verify orientation, purity, and absence of inclusions or cracks. Only those that pass stringent testing become certified sapphire seeds for crystal growth.

Key Characteristics of Sapphire Seed Crystals

• Ultra-high purity – Typically ≥99.99% Al₂O₃, ensuring the sapphire grown from the seed is optically clear and structurally stable.

• Precisely defined orientation – Enables uniform lattice alignment and consistent crystal properties.

• Thermal durability – Resistant to temperatures over 2,000°C, necessary for contact with molten alumina.

• Low dislocation density – Reduces imperfections, cracks, and optical defects in the final sapphire boule.

• Customizable geometry – Available in wafer form, small blocks, or rods depending on the specific growth method.

These attributes make sapphire seed crystals the single most important factor in determining the quality of the sapphire boule produced.

Sapphire Square Seed Crystal Specifications

Applications – Sapphire Growth Methods That Rely on Sapphire Seed Crystals

The primary and almost exclusive use of sapphire seed crystals is to enable the production of synthetic sapphire, and they are absolutely indispensable in nearly all modern sapphire growth techniques. Each method uses the seed crystal in a slightly different way, but the principle remains the same: the seed crystal dictates the lattice orientation of the sapphire boule that grows from it, ensuring uniformity and preventing random crystallization.

Kyropoulos Method (KY)

This is the most widely used method for producing sapphire for LED substrates and optical components. In the KY process, the sapphire seed crystal is carefully dipped into a crucible containing molten aluminum oxide (Al₂O₃) at temperatures exceeding 2,000°C. By precisely controlling the cooling rate, sapphire begins to solidify on the seed’s surface, expanding outward into a large, low-stress boule. Because the seed defines the crystal orientation, the resulting sapphire boule maintains a consistent lattice structure, which is essential for downstream wafer slicing and polishing.

Czochralski Method (CZ)

In the CZ process, a seed crystal is attached to a pulling rod and gently immersed into the molten alumina. The seed is slowly lifted and rotated, drawing up a column of sapphire that grows continuously from the seed’s lattice. This method allows for extremely tight control over diameter and uniformity, which is crucial for high-precision optical sapphire and specialty components. Without a perfectly oriented seed, the crystal would twist or develop internal stresses that make it unsuitable for demanding applications.

Heat Exchange Method (HEM)

HEM also relies on a sapphire seed crystal to initiate growth. Here, the seed is placed at the base of the crucible, and the furnace is cooled from the bottom up. Sapphire forms as the heat dissipates, growing upwards from the seed. Because the temperature gradient is gentle, HEM can produce very large sapphire blocks with minimal internal stress and excellent transparency — ideal for aerospace windows, laser systems, and scientific optics.

Edge-defined Film-fed Growth (EFG)

Unlike KY and CZ, which produce boules, the EFG method uses the seed crystal to grow sapphire in special shapes. The seed is positioned at the edge of a mold, and molten alumina feeds the seed by capillary action. As the seed pulls the material upwards, sapphire grows into rods, ribbons, tubes, or rings with the same orientation as the seed. This process would not be possible without a seed crystal, as uncontrolled crystal growth would result in distortion or breakage.

FAQ (Frequently Asked Questions) of Sapphire Seed Crystal

Q1: Why are sapphire seed crystals necessary?
A1: They define the crystal orientation and lattice structure of the growing sapphire boule. Without a seed, the crystal would grow randomly, resulting in defects, cracks, and poor optical quality.

Q2: Can a single seed crystal be reused?
A2: Some seed crystals can be reused a few times, but repeated use increases the risk of contamination and lattice distortion. Most manufacturers prefer fresh seeds for critical growth operations.

Q3: What orientations are available?
A3: The most common orientations are C-plane (for LED substrates), A-plane, and R-plane, but custom orientations can be prepared for specialized needs.

Q4: Which sapphire growth methods need seed crystals?
A4: Almost every modern method—KY, CZ, HEM, and EFG—depends on seed crystals. Only the outdated Verneuil method does not.

Q5: What industries indirectly depend on seed crystals?
A5: Any industry that uses synthetic sapphire—LED lighting, semiconductor electronics, aerospace optics, luxury watches—relies on sapphire grown from seed crystals.
